MONDRAKER

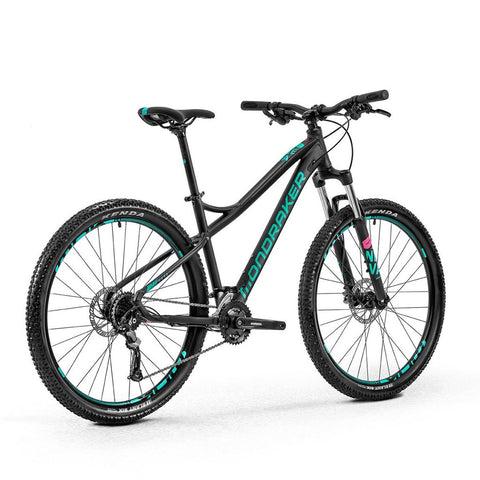

Bicicleta MONDRAKER - NEVA 27.5 (WOMEN)
COMPONENTS / TECHNICAL SPECIFICATIONS
-
Frame
Neva 27´5 6061 Custolite Alloy triple butted, Avant Geometry, internal headset, HHG internal cable routing, replaceable hanger, BSA bottom bracket, QR 9mm rear axle
Medidas:
S: 330mm / M: 380mm / L: 430mm
Rear shock
// No aplica
Shock setting
/ No aplica
Fork
Suntour XCT ATB RL 27´5 100mm, 28mm steel stanchions, 1-1/8” steerer tube, 9mm QR axle. Settings: spring preload, lockout
Headset
CH-9280, Internal ZS, 44mm external diameter cup
Stem
MDK XC, alloy, 31.8mm barbore, rise: +/-7°, length: sizes S/M: 60mm, size L: 75mm

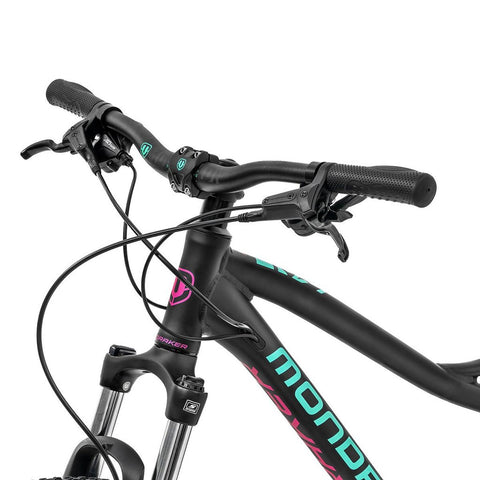

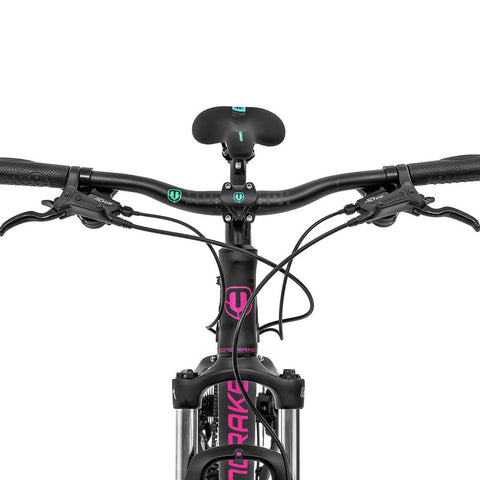

Handlebar
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 660mm, 9° backsweep, 5° upsweep, 31.8mm barbore
Grips
Onoff Ergo
Seatpost
MDK XC, 6061 T6 alloy, diameter 27.2mm, length 350mm, offset 15mm
Saddle
Mondraker Neva design
Front brake
Tektro HDM275 hydraulic, 160mm IS 6 bolts rotor
Rear brake
Tektro HDM275 hydraulic, 160mm IS 6 bolts rotor
Brake lever
Tektro HDM275 hydraulic
Rim
MDK-XS1 27´5, 24mm external width, 32 spokes
Spokes
CN round stainless steel
Front hub
MDK DC20, 9x100mm QR axle, cup & cone ball bearings, IS 6 bolts
Rear hub
MDK DC22, 9x135mm QR axle, cup & cone ball bearings, IS 6 bolts
Front tyre
Kenda Slant Six 27´5x2.35 single compound, 30TPI, wire bead
Rear tyre
Kenda Slant Six 27´5x2.35 single compound, 30TPI, wire bead
Crank
Shimano MT101-2, 2x9s, S/M size: 170mm, L size: 175mm
Rings
36T alloy / 22T steel
Bottom bracket
CH-52
Pedals
Wellgo LU-895DU
Chain
KMC Z99, 9s
Front derailleur
Shimano Alivio FD-M4000, side swing, front pull
Rear derailleur
Shimano Acera RD-M3000, Shadow, SGS, 9s
Lever
Shimano Altus M2010, 2x9s
Sprocket
SunRace CSMS90, 11-34T, 9s
Hanger
Mondraker M072
Others
/
Weight without pedals
14.4 kg
| Frame size | S | M | L | XL | |
| A | Seat Tube Lenght | 400mm | 440mm | 480mm | 520mm |
| B | Top Tube Lenght | 575mm | 600mm | 620mm | 640mm |
| C | Bottom Bracket Drop | -65mm | -65mm | -65mm | -65mm |
| D | Bottom Bracket Height | 300mm | 300mm | 300mm | 300mm |
| E | Chainstay Lenght | 445mm | 445mm | 445mm | 445mm |
| F | Seat Tube Angle, Actual | 72° | 72° | 72° | 72° |
| G | Seat Tube Angle, Effective | 73.5° | 73.5° | 73.5° | 73.5° |
| H | Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
| I | Fork Offset | 46mm | 46mm | 46mm | 46mm |
| J | Wheelbase | 1087mm | 1112mm | 1133mm | 1154mm |
| K | Head Tube Lenght | 100mm | 100mm | 110mm | 125mm |
| L | Reach | 392mm | 417mm | 434mm | 450mm |
| M | Stack | 616mm | 616mm | 625mm | 639mm |
